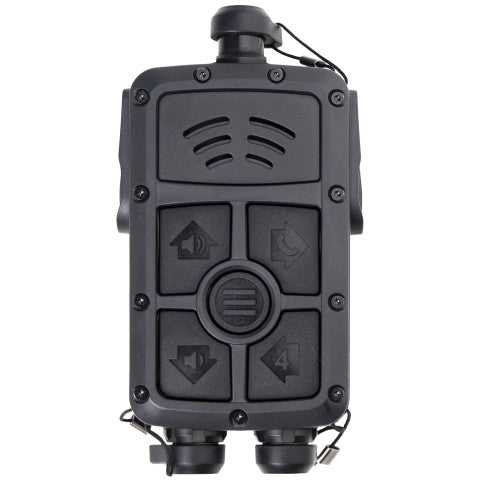

SAVOX TRICS Communication Controller
SAVOX TRICS Communication Controller
Couldn't load pickup availability
The SAVOX TRICS® is the communications equipment for tactical operations. This tactical radio and intercom system can be customized to meet the communication needs of Special Forces units of today both within Armed Forces, Police, Civil Defence, Customs and Border Guard. This fully software configurable controller is designed especially for tactical operations and the rapidly changing environments and missions.

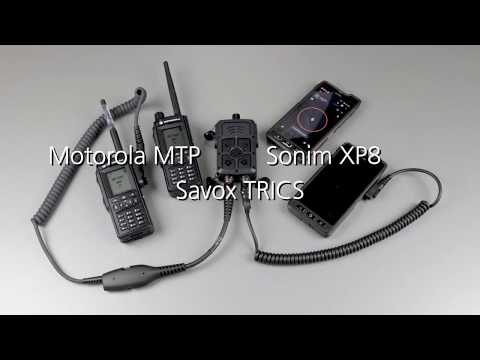

The versatile SAVOX TRICS® allows the remote control of up to 4 different channels and communication devices. The user can combine radios, smartphones and other LTE devices as well as vehicle intercom systems.
- Controls up to 4 different devices (radios, smartphones and other LTE devices, vehicle intercom systems)
- Software configurable
- Dynamic audio routing; user can choose the best audio options for the mission
- Remote Speaker microphone function
- Voice amplifier option
- Voice prompted menu
- Silent buttons
- Designed according to MIL standards
| Market Segment | Defence, Public Safety |
|---|---|
| Product code | K600602 |
| Size L | 100 mm |
| Size W | 68 mm |
| Size H | 34 mm |
| Housing Material | Polyamide |
| Housing Colour | Black |
| Weight | 215 g |
| Environmental Tests | AECTP 302 - high temperature Procedure I: Operation, AECTP 302 - high temperature Procedure I: Storage, AECTP 303 - low temperature Procedure I: Operation, AECTP 303 - low temperature Procedure I: Storage, High Temp Operational, Method 501.5 Procedure II, 60?C, High Temp storage, Method 501.5 Procedure I, 60?C, Low Temp Storage, Method 502.5 Procedure I, -35?C, Low temperature (operational) MIL810G 502.5, Procedure II, C2, Mech Shock, Method 516.6 Procedure I, Half sine, 11ms, 50m/s^2, 3 tests in each direction, 6 directions, Salt fog MIL810G 509.5, Shock, Method 516.5, 1.8m |
| Options | Wireless PTT, RSM function, Voice Amplifier, Bluetooth, support for 4 radios |
| Operational Temperature Min | -40 °C (-40 °F) |
| Operational Temperature Max | 60 °C (140 °F) |
| Ingress Protection | IP68 |
| Storage Temperature Min | -35 °C (-31 °F) |
| Storage Temperature Max | 45 °C (113 °F) |
| Protection Against Drop(fall) | 1.8 m |
| Microphone Type | Electret, Omni-Directional |
| Headset Connector | 14P male |
| PTT Button Operational Life Time | 100,000 |
| Other Button Operational Life Time | 100,000 |
| Battery Life Time | minimum 24 hours |
| Battery Capacity | 1050 Ah |
| Battery Charging Time | 7200 s |
| Connectivity | Wired |
| Use Voltage | 3.7V |
| Electro Magnetic Compatibility (EMC) | EN |
| Wireless | Bluetooth |
| Emergency Button | No |
| Attachment/Fastening | Clothing Clip, Molle attachment |
*Radio Cable additional $250.00
*Six software packages available.
*Call for Upgrade Options, Accessories, and Single and Dual Cables
